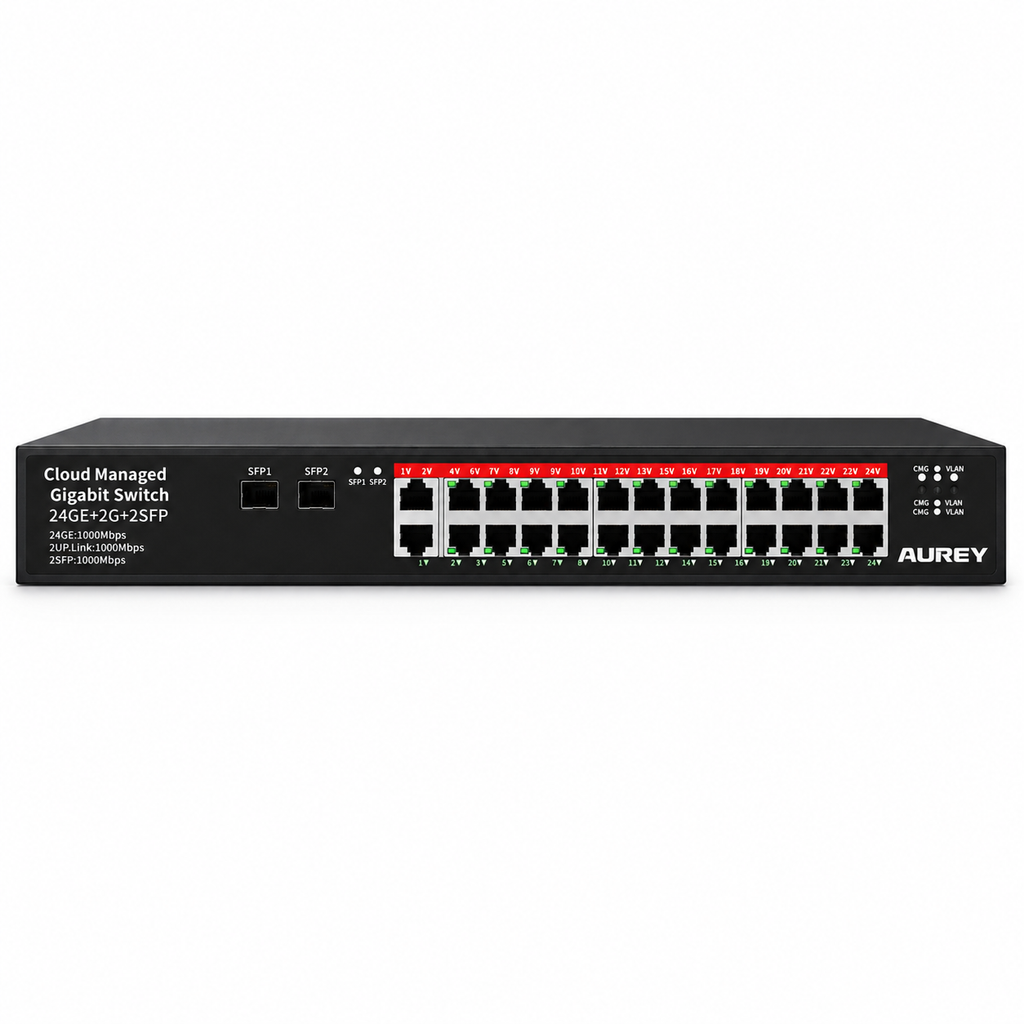

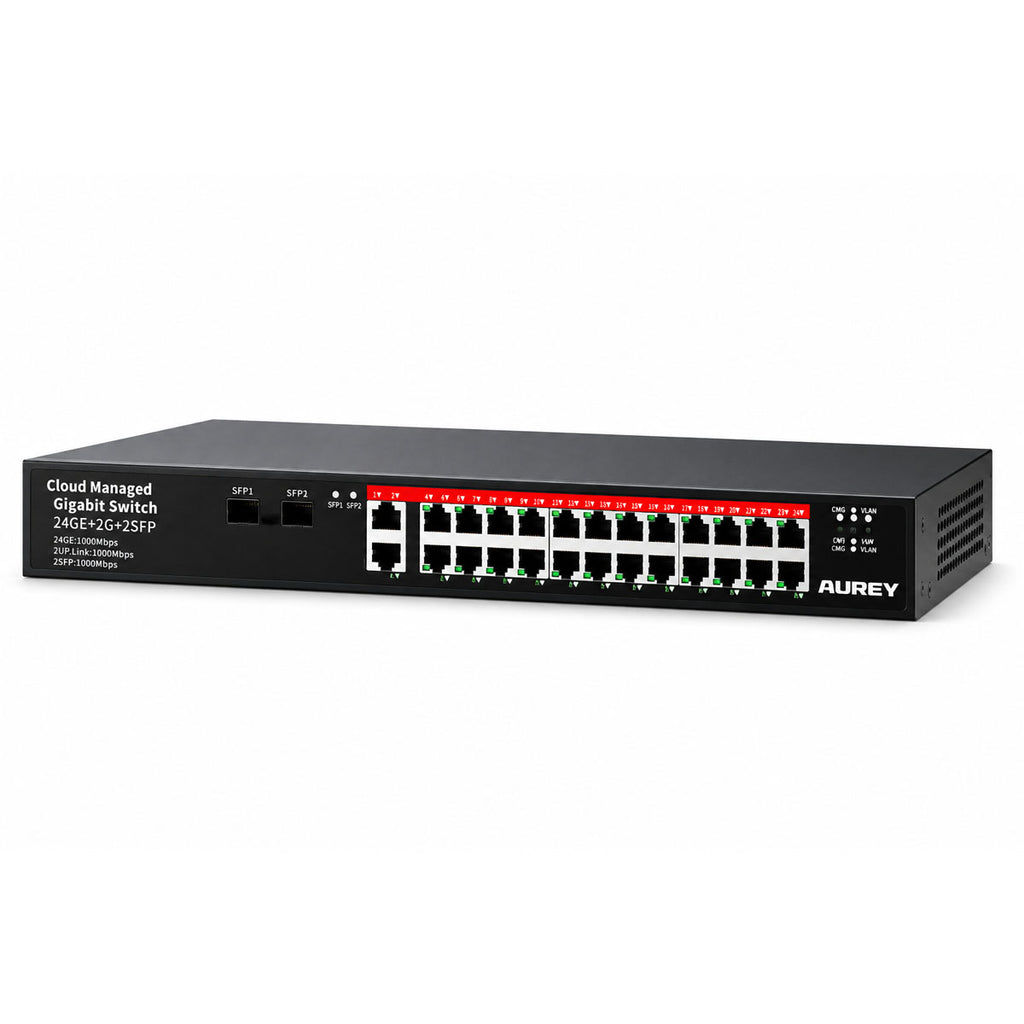

AUREY 24-Port Gigabit Switch, 24GE + 2G Uplink + 2SFP Cloud Managed Switch for PoE CCTV Cameras, NVR and Security Monitoring Systems
The AUREY GPS424 Cloud Managed Gigabit PoE Switch is a professional networking solution designed for large CCTV surveillance systems, commercial security projects, and enterprise network applications.
Featuring 24 × 1000Mbps adaptive PoE RJ45 ports, 2 × Gigabit RJ45 uplink ports, and 2 × Gigabit SFP fiber ports, this switch provides high-speed network connectivity and reliable power delivery for multiple PoE security cameras through a single Ethernet cable.
The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, with intelligent PoE detection technology that automatically identifies compatible powered devices (PD), helping prevent damage to non-PoE equipment.
With a powerful 360W built-in power supply, the GPS424 can support multiple PoE devices simultaneously, making it suitable for:
The integrated cloud management platform allows users to remotely monitor and manage the switch through the Amitres IOT APP or WEB interface. Users can check device status, monitor port activity, configure VLAN settings, restart ports, upgrade firmware, and manage network functions remotely.
The switch supports advanced networking features including:
Built with a durable full metal housing, the switch provides excellent heat dissipation and long-term reliability.

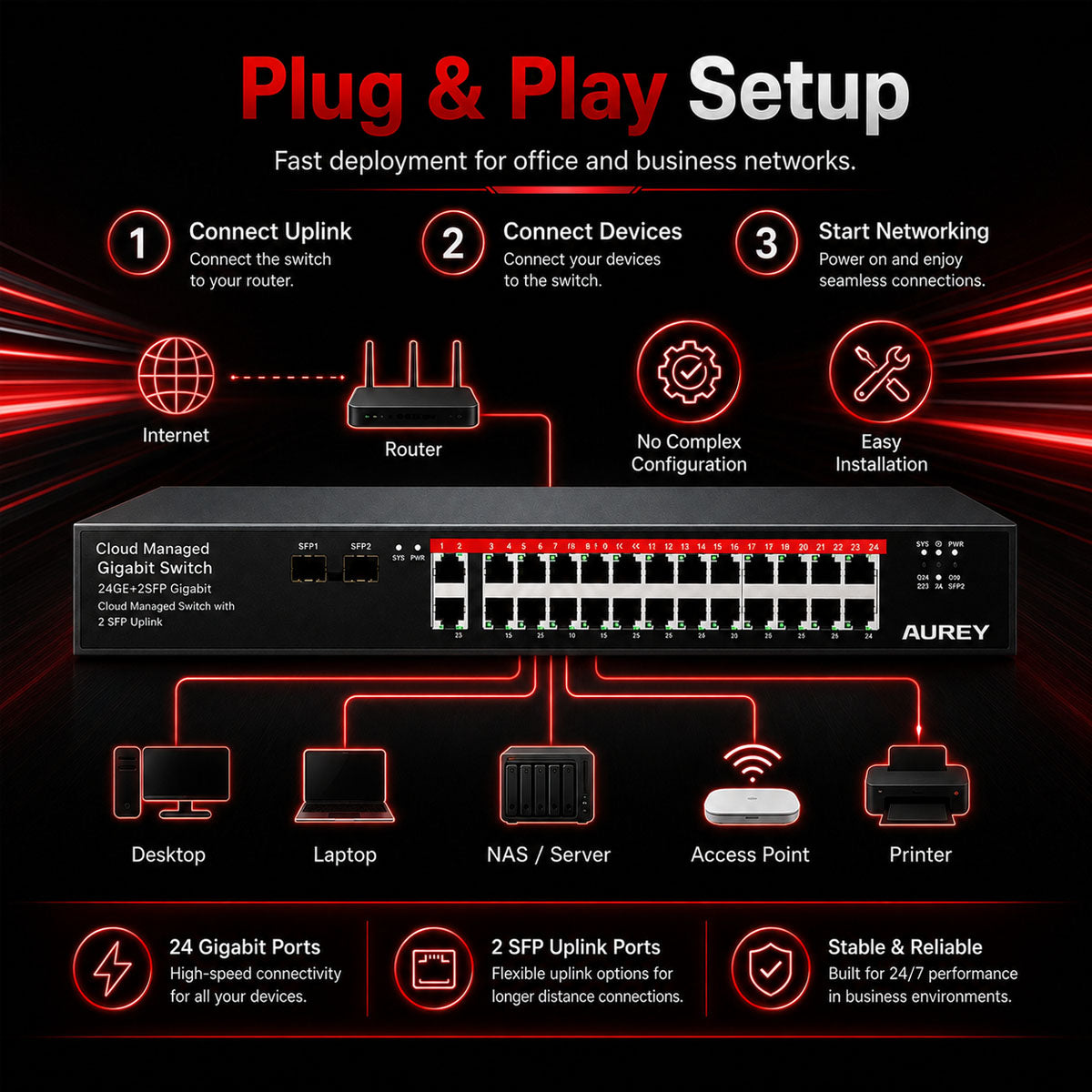

With plug-and-play installation and rack mounting compatibility, the AUREY GPS424 is an ideal choice for professional PoE surveillance deployments requiring stable performance and flexible network management.
Equipped with:
Each port supports Gigabit data transmission and PoE power supply for compatible IP cameras and network devices.
Provides:
For connection with:
Built-in:
Supports fiber uplink applications for longer-distance network deployment.
Built-in:
Designed for multi-camera PoE installations.
Supports:
Maximum output per PoE port:
30W
Supports:
Through:
Amitres IOT APP
Remote functions include:
Supports:
Supports:
| Item | Specification |
|---|---|
| PoE Ports | 24 × 1000Mbps PoE RJ45 |
| Uplink Ports | 2 × 1000Mbps RJ45 |
| Fiber Ports | 2 × 1000Mbps SFP |
| Ethernet Standard | IEEE 802.3 |
| Fast Ethernet | IEEE 802.3u |
| Gigabit Ethernet | IEEE 802.3ab |
| SFP Standard | IEEE 802.3z |
| Parameter | Value |
|---|---|
| Backplane Bandwidth | 56G |
| MAC Address Table | 8K |
| Packet Forwarding Rate | 41.664Mpps |
| Item | Specification |
|---|---|
| IEEE 802.3af | Supported |
| IEEE 802.3at | Supported |
| Maximum Port Output | 30W |
| Over-current Protection | Supported |
| Over-voltage Protection | Supported |
| Short Circuit Protection | Supported |
| Sequential Startup | Supported |
| High Power PD Soft Start | Supported |
Supported network cables:
1000Base-T:
100Base-TX:
10Base-TX:
Power Input:
AC 100-250V
Power Supply:
360W
Housing:
Full metal casing
Rack Mount Support:
Supported
Operating Temperature
0℃ ~ 40℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10% ~ 90% RH (non-condensing)
Storage Humidity
5% ~ 90% RH (non-condensing)
Maximum Altitude
2000m
Bare Machine Size
440mm × 180mm × 45mm
(with rack mounting ears)
Complete Machine Size
465mm × 265mm × 90mm
Net Weight
2.5kg
Carton Packing
5 pcs/carton
Carton Size:
480mm × 470mm × 280mm
10/700us Surge Protection:
Perfect for:
✔ 24 Channel IP Camera Systems
✔ CCTV Security Projects
✔ Commercial Surveillance
✔ Factory Monitoring Systems
✔ Warehouse Security
✔ Office Buildings
✔ Hotel Security Systems
✔ Large Residential Projects
1 × AUREY GPS424 Gigabit Cloud Managed PoE Switch
1 × Power Cable
1 × User Manual
1 × Rack Mount Accessories
